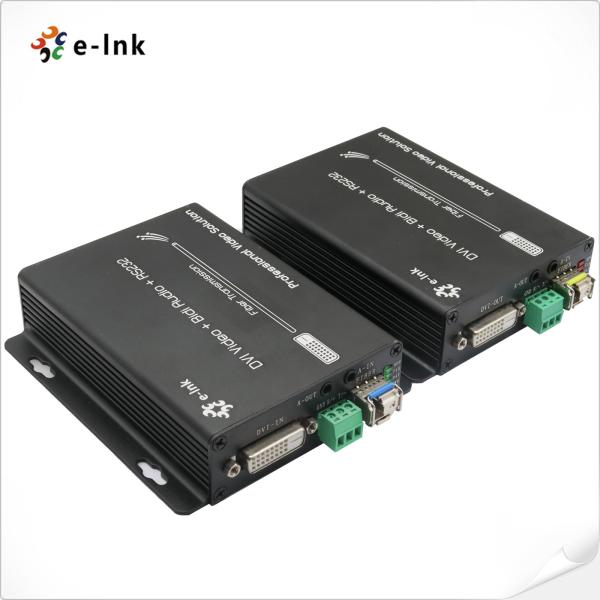

DVI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender
DVI Fiber Optic Extender Overview
This fiber optic extender enables long-distance transmission of DVI signals over a single optical fiber,
supporting resolutions up to 1080p and offering KVM control, RS232, GPIO signal transmission,
and external audio transmission. With excellent stability and security, it's suitable for a variety of
applications requiring high-quality, high-definition signal transmission over long distances, such as
video conferencing, broadcast television, medical imaging, security surveillance, and multimedia presentations.
DVI Fiber Optic Extender Features
► Transmits DVI video signals, RS232 and audio up to 20km over a single fiber cable;
► Support resolution up to 1920*1200@60Hz ;
► Special support 1600*1200 @60HZ
► Support external bidirectional stereo audio transmission;
► Compliance with DVI 1.0 and HDCP 1.2 standard;
► High compatibility, can auto-match source and display device;
► Built-in automatic adjustment system, make the image smooth, clear and stable;
► Built-in ESD protection system;
► Simple to install, plug and play;
DVI Fiber Optic Extender Panel & Interface
DVI Fiber Optic Extender Technical Indexes
| Parameter | Description |
| Video | Standards | DVI 1.0 and HDCP 1.2 |
| Maximum pixel clock | 165MHz |
| Maximum data rate | 2.97Gbps |
| Compliant | 1080P@50/59.95/60Hz( Max 1920*1200@60Hz) 1080P@23.98/24/29.97/30Hz,
1080i@50/59.94/60/Hz, 720P@23.98/24/29.97/30Hz, 720P@50/59.94/60Hz Special support 1600*1200 @60HZ |
| Connector | Female DVI-D |
| Impedance | 100Ω |
| DVI Cable Range | <5Meter (Resolution up to 1920*1200@60Hz) |
| Audio | Interface | 3.5MM external stereo audio |
| Transmitter | 1Ch Input + 1Ch Output |
| Receiver | 1Ch Input + 1Ch Output |
| RS232 | Interface | 3-Pin Terminal Block |
| Baud Rate | ≤115200 |
| Data Bits | 8 bits |
| Optical fiber | Interface | SFP model – LC connector |
| Fiber type | Single-mode |
| Wavelength | 850nm/1310nm/1550nm |
| Interface bandwidth | 3Gbps |
| Transmission distance | Multi-mode fiber: <500M Single-mode fiber: 0~80km |
| Other | Power supply | The power adapter: DC 5V |
| Power dissipation | MAX 4W |
| Temperature | Operating: -20℃ ~ +70℃ |
| Humidity | Operating: 5% ~ 90% |
| Dimension (LxWxH) | 120 x 83 x 28 (mm) |
DVI Fiber Optic Extender Dimension & Size
DVI Fiber Optic Extender Application
