10/100/1000Base-T To 100/1000Base-F Gigabit Fiber Optic Cable Ethernet Media Converter Single Core MM

Name: 101001000BaseT To 1001000BaseF Gigabit Fiber Optic Cable Ethernet Media Converter Single Core MM
Brand: E-link
Price: 1 USD

Quality 10/100/1000Base-T To 100/1000Base-F Gigabit Fiber Optic Cable Ethernet Media Converter Single Core MM for sale

Brand Name : E-link

Model Number : LNK-3011-SFP

Certification : CE/FCC/Rohs

Place of Origin : Guangdong, China

MOQ : 1

Price : Negotiation

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 5000pcs Per Month

Delivery Time : 4-6 days

Packaging Details : Fiber Ethernet Media Converter Standard export package

Fiber Port : SC

Ethernet Port : Rj45

Fiber Type : MM dual fiber

Wavelength : 850nm

Rate : 10 / 100 / 1000M

Conversion means : Media conversion

Contact Now

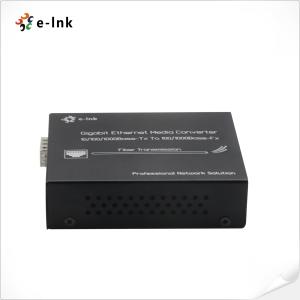

Model:LNK-3011-SFP

Overview

The LNK-3011-SFP is a compact Gigabit Ethernet media converter that bridges UTP

copper (10/100/1000Base-T) and fiber optic (100/1000Base-SX/LX) networks using SFP

transceivers. Compliant with IEEE 802.3/u/z/ab standards, it extends transmission

distances from 100m (copper) up to 120km (fiber), ensuring flexible, high-speed

connectivity.

Key improvements:

Shortened while retaining critical specs (standards, media types, distance).
Streamlined phrasing for readability.
Highlighted SFP flexibility and key performance benefit (distance extension).

Features

10/100Mbps auto-sensed, facilitating network upgrade

10/100/1000M media converter with SFP slot is available
Supporting full-duplex and half-duplex and its auto-sensed
Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation
Supporting the transmission of extra-long VLAN packets
Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets;
Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiber

Application

10/100/1000Base-T To 100/1000Base-F Gigabit Fiber Optic Cable Ethernet Media Converter Single Core MM

Technical Indexes

Parameter	Specifications
Standard	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 100/1000Base-SX/LX Gigabit Ethernet
Wavelength	850nm/1310nm/1550nm, depend on SFP module
Transmission distance	multi-mode Dual-fiber: 220m (62.5/125μm)/550m (50/125μm)
	single mode Dual-fiber: 20/40/60/80 Km
	single mode Single fiber: 20/40/60/80 Km
	Category-5 twisted pairs: 100m
Port	One RJ45 port: for connecting with STP/UTP category-5 twisted pairs
Port	One optical port: SFP 3.3V
Conversion means	Media conversion
BER	<10-9
MTBF	100,000 hours
LED indicator	PWR (power), FDX (full duplex) FX (optical link action), 1000M (TP cable rate 1000M), 100M (TP cable rate 100M), Link/Act (TP cable packet forwarding action)
Power supply	5-12V DC
Power consumption	5W
Operating temperature	-10~55ºC
Operating humidity	5%~90%
Maintaining temperature	-40~70ºC
Maintaining humidity	5% ~ 90% non-condensing
Dimensions (W x D x H)	94 x 71 x 26 mm

10/100/1000Base-T To 100/1000Base-F Gigabit Fiber Optic Cable Ethernet Media Converter Single Core MM
